Hexayurt project/5.5 Yurt
Available in other languages: /fi /fr
The 5-1/2 yurt was conceived as a solution to three problems the classic hexayurt has:
- Short door
- Limited headroom
- Multi-person assembly

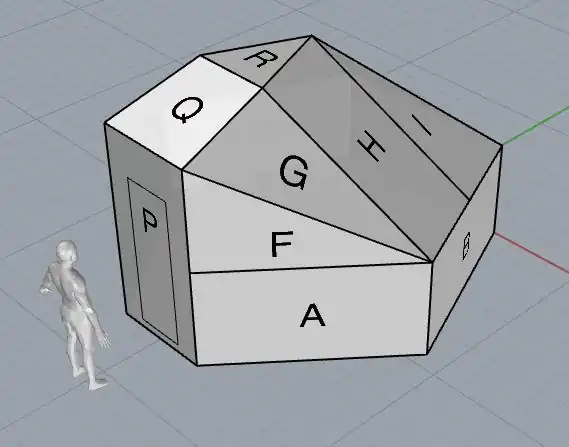

In concept it is similar to the H13, but with the advantage of greater stability, as the door is cut from a single, vertical 4' x 8' panel, which can be backed with plywood. The name comes from the fact that the footprint is kind of halfway between a pentayurt and a hexayurt: it has five horizontal 4' x 8' panels, and one vertical panel. The rest of the geometry naturally fills in the space above this basic skeleton.
The first 5-1/2 yurt was built for Burning Man 2018 and tested on the playa. See below for more details.
This page is currently just a rough sketch for construction. It contains sufficient information for you to build a 5-1/2 yurt if you have prior experience with hexayurts. But you should be familiar with the basic hexayurt instructions.
PAGE UNDER CONSTRUCTION
Materials
- 13 structural panels (polyiso, plywood or cardboard as appropriate for a hexayurt)
- bi-directional filament tape
- foil tape
- 2" industrial-strength Velcro
