OctoYurt

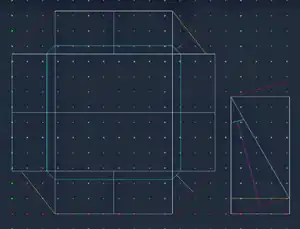

This is an alternative configuration I've come up with that has 175sqft of floor space compared to only 166sqft of a normal H12 hexayurt (5% better) while having double the amount of 6ft high standing room at 83sqft vs 41sqft of old H12. Only needs 2 panels cut in half vs 6 panels of a typical yurt. The ceiling is 7ft 5inches high over 64sqft of area.

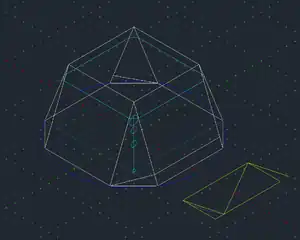

Isometric view of OctoYurt showing size compared to 6 foot human. — ISO view of OctoYurt

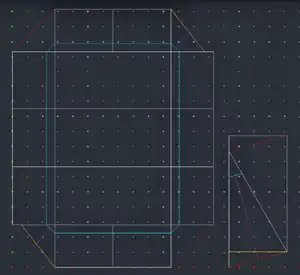

This is the extended version that has 119sqft of standing room and 230sqft of floor space.

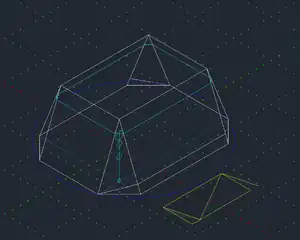

Isometric view of stretched OctoYurt compared to 6 foot human.
